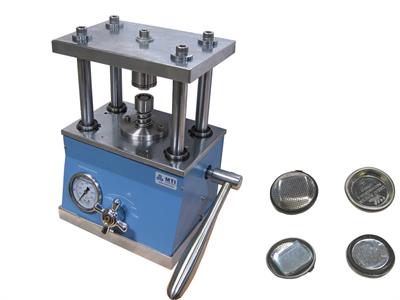

Compact Hydraulic Crimping & Disassembling Machine for All Button Cells of CR2016 , CR2025 & CR2032



Product Description:

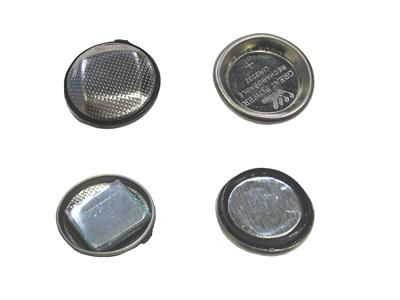

HP8-MSK-110D is a newly designed coin-cell crimper/disassembler with lighter weight and smaller size. The  crimper/disassembler seal and  separate all types of CR20XX series coin cells, such as CR2032, CR2025 and CR2016 without destroying the internal of the cell to study inside materials.

Specifications:

  • Pressure:                         Max. 8 metric Tone hydraulic with automatic return

  • Dies:                                One set of disassembling dies for all CR20XX coin cell, such as CR2032, CR2025 and CR2016.

  • Structure:                       Heavy Duty Steel plate

  • Net Weight:                   25Kg

  • Dimension:                    228L x 176 W  x 310H  mm

  • Shipping Weight :        35 K

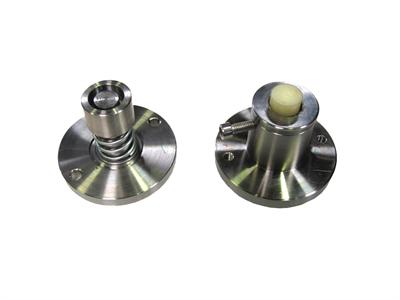

    Simply change the upper and lower die to disassemble into the crimper



    • There is a overpressure protection valve built in hydraulic press.

    • Default Max. pressure is 50 Kg/cm^2  which is enough for crimping the coin cell.

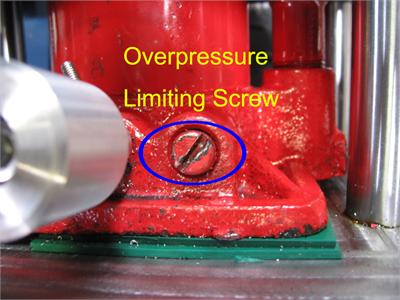

    • When pressure is beyond 50 Kg/cm^2, pressure will drop and can not be hold ( see picture below )

    • Please choose HP8-MT-160 hydraulic crimping machine if the pressure need to be hold for a certain time during your operation.

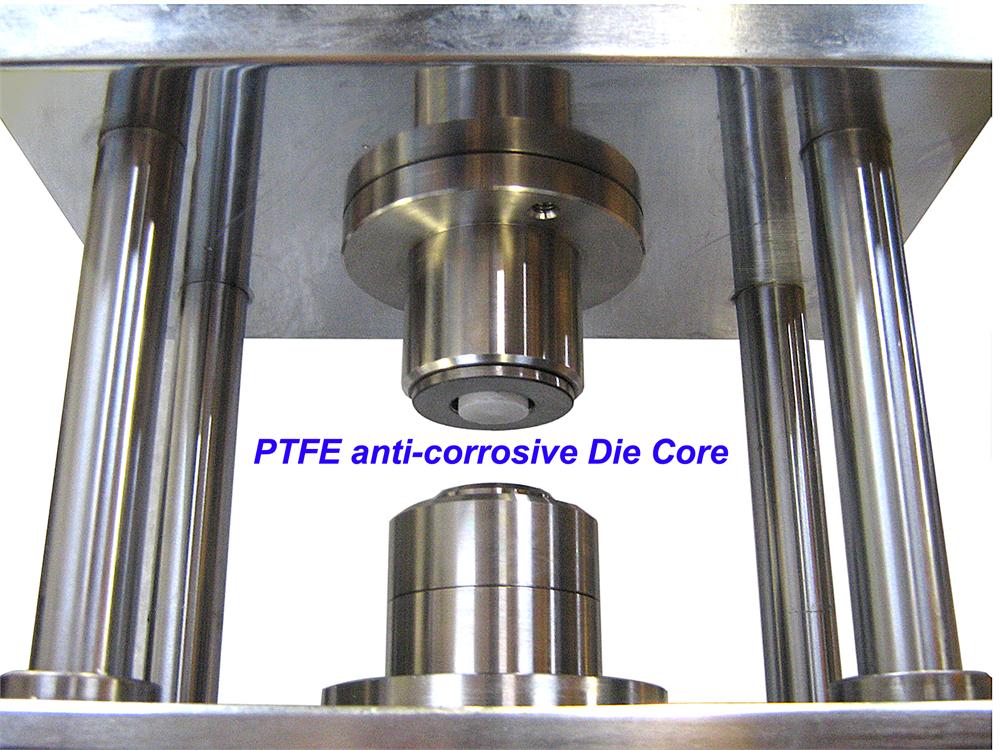

    PTFE anti-corrosive Die Core can also prevent the coin cells from being short circuited.



Warning: The built-in small hydraulic pump is not designed for holding the high pressure, pressure inside will be released gradually after reaching 50~80 Kg/cm^2, (which is enough for disassembling the coin cell).

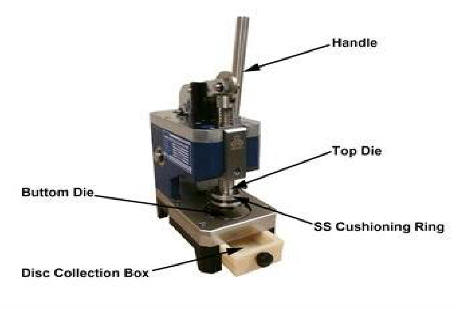

HP6-EQ-T10


Compact & Precision Disc Cutter with Standard 16, 19, 20 (optional sizes of 3 - 24mm also available) Diameter Cutting Die

Product Description:

HP8-EQ-T10-Disc is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box with a transition chamber diameter larger than 230mm. This tool is manually operated and is designed for cutting round discs from thin metal sheet/foil (< 0.5 mm) or separator film (<30um).  The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researches as well as TEM sample preparation.



SPECIFICATIONS:
Structure
 		Major structural material: Cr Plated Steel
Cutting Die
  • 16, 19, and 20mm precision dies are included in standard package
  • Optional 3 - 24mm customized dies are available upon request at ~$599.00/each
Product Dimensions
  • 200mm(L) x 120mm(W) x 280mm(H)
  • Compact size which can be put into glovebox through air lock chamber
Warranty
  • One year limited manufacture warranty with lifetime support
  • Rusting and damage due to improper storage condition or maintenance is not covered by warranty
Application Notes
  • If you are going to make CR2016, CR2025 or/and CR2032 coin cell batteries, you will need at least three cutting dies:
    • 16mm (for negative side case, which is 16.5mm in diameter)
    • 19mm (for positive side case, which is 20mm in diameter)
    • 20 mm (for separator to fully separate the electrodes in both negative and positive cases)
  • For CR2450 coin cells, a 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die can be used for cutting either electrode discs or separator discs (the 24mm cutting die can be purchased as optional die)
  • Separator discs must be large enough to fully separate the positive and negative electrodes to avoid short-circuit inside the coin cells
Net Weight 10 kg (22 lbs)

HP6-EQ-T06


Precision Disc Cutter with Standard 19 & 24mm and Optional 10, 12, 15, 16, 20 mm Diameter Cutting Die

Product Description:

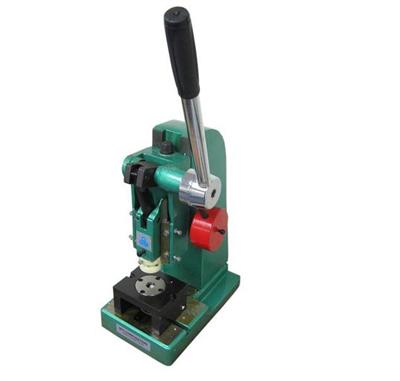

HP8-EQ-T06-Disc is a precision disc cuter with 600 Kg max. pressure and manual operated and is designed for cutting round disc from thin metal sheet or foil (< 0.5 mm) to prepare electrode disc for split flat cell for battery research.

19mm and 24mm precision die with disk collect drawer are included with pressing cuter (see picture below)

with optional diameter at:
10mm (for electrode disc upon customer's requirement)
12mm (for electrode disc upon customer's requirement)
15mm (for electrode disc in CR20 series)
16mm (for electrode disc  in CR20 series)
19mm (for electrode disc  in CR20 series)
20 mm (for electrode disc in CR2450 cell)
24 mm (for electrode disc in CR24+ series or upon customer's requirement)

Optional die (one cutter share multiple cutting die) is available please choose at product options above

Specifications:

Parameter

Unit

P/N
Max. Nominal Pressure KN
 		 600
Max. Stroke mm 40
Max. Height for part mm 220
Min. Height for part mm 90
Distance between pressing head and    bed mm 119
Diameter of hole for mold insert mm 12
Working table size mm 180 x 170
Overall Dimension mm 230L x 190W x 450H
Net weight Lbs 85
Shipping weight Lbs Wood box: 90 (11x17x2Pallet: 110  (39x31x35")

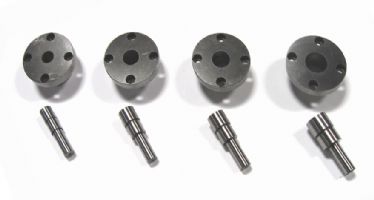

Cutting die:

HP6-EQ-CR2325-2032

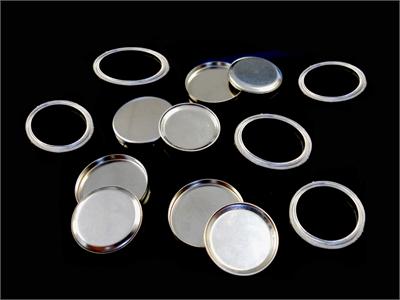

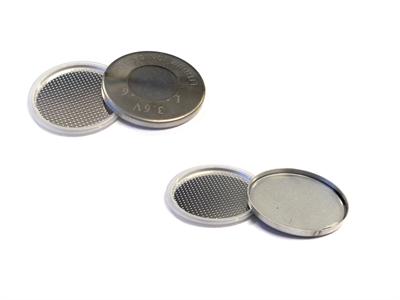

   Stainless Steel-CR2325 or CR2032 button cells cases (23d x 2.5t mm) (1 pair with O-ring)

  • One pair of CR2325 button cells case including bottom and top part, made of 316 stainless steel with sealing O-ring.
  • Dimension of crimped cell: ( Dia x H): 230-0.4 mm x 2.50-0.3 mm
  • ID of bottom can: 22mm

  • ID of top can: 20mm

  • Insulation ring: PP

  • Weight: 0.1 Oz
  • It is excellent for developing new rechargeable battery and battery electrodes
    • 100 pairs of CR2032 button cell cases, made of 304 stainless steel with sealing O-ring
    • Dimensions ( Dia X H): 20mm x 3.2mm
    • Weight: 0.12Oz
    • It excellent for developing new rechargeable battery and battery electrodes

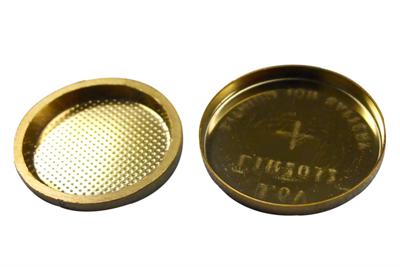

HP6-EQ-CR2032-CASE-304G
 Gold-Coated SS304 CR2032 Button Cell Cases (20d x 3.2mm) with (1 pair with O-ring)

  • One pare of CR2032 button cells case , made of 304 stainless steel with sealing O-ring
  • 300-500A thick Gold coating  inside case  by plasma sputtering coater
  • Inner sides are gold coated to improve anti-corrosive resistance

  • Dimension ( Dia X H): 20mm x 3.2mm
  • Weight: 0.12Oz
  • It is particularly suitable for developing new rechargeable battery and battery electrodes

HP6-EQ-STC

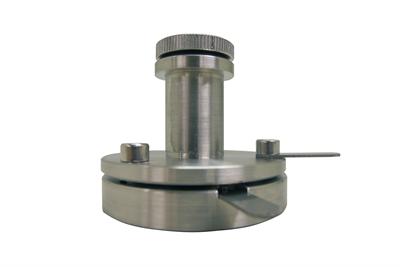

 Split Test Cell for Battery: Optional size at 10, 12, 15, 19, 20, 24 mm Diameter Cell

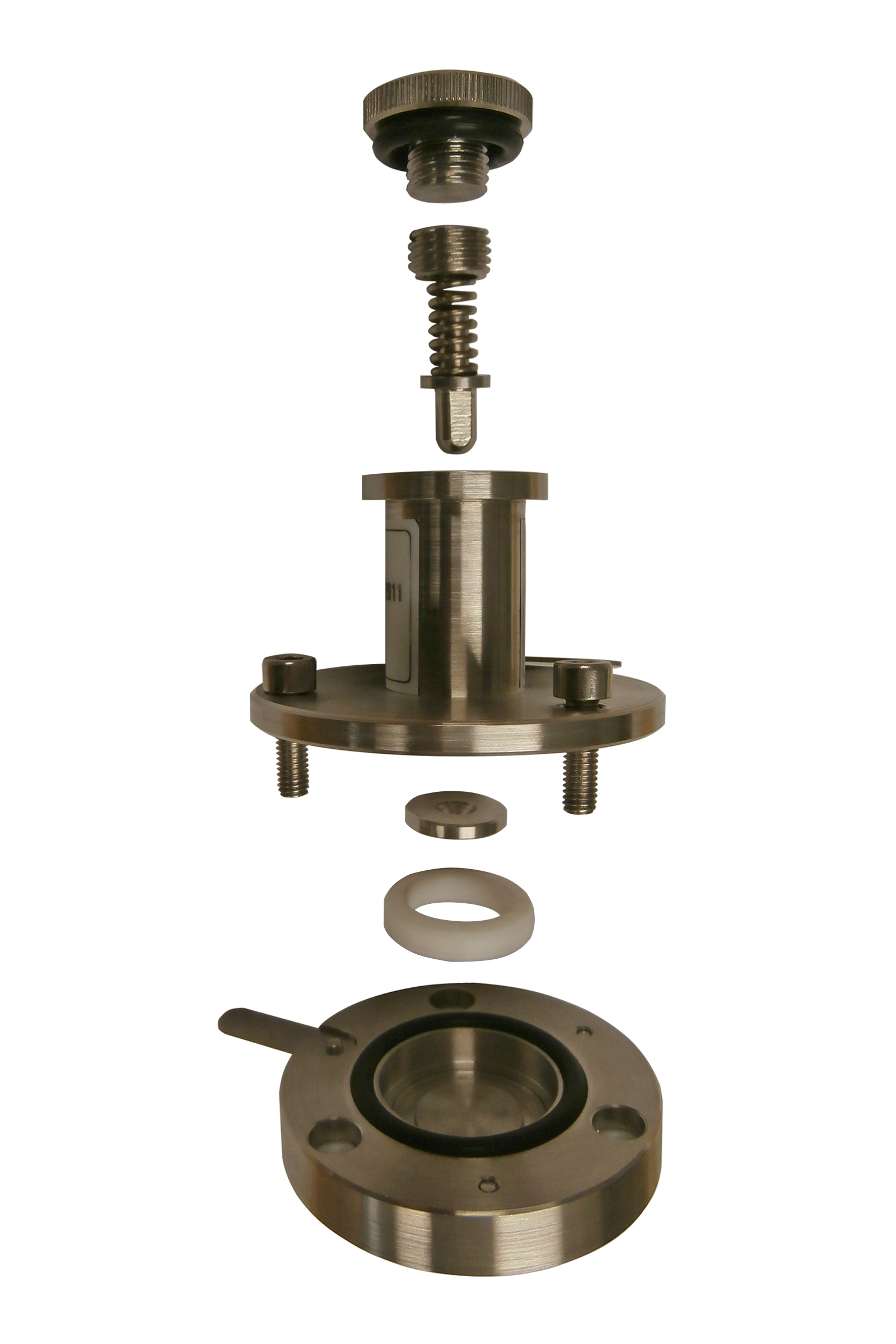

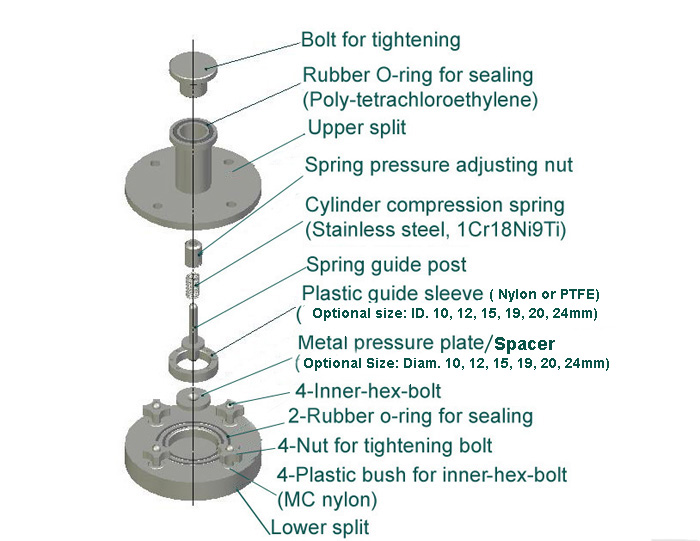

The HP6-EQ-STC split-able test cell is designed for R&D of rechargeable battery material. It can accept various sizes of (10,12, 15, 19, 20, and 24mm diameter) electrodes and separators and test the electrodes easily and quickly.

 Specification

Structure Full stainless steel
Max. Cell Thickness (cathode+separator+anode) 6mm



Features
  • A 6mm height spacer inside the test cell to press down on the electrode and prevent the electrode from curling
  • Sealed by electrolyte corrosive-proof PTFE O-rings
  • Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 250 ºC
  • Easy to separate after testing
  • Small enough to be put in and taken out from a glove box
  • Same functionality to "Swagelok Coin Cell" but with more size options for electrode and separator and also the proper dimensions for glove box compatibility
Optional
  • 10, 12, 15, 19, 20, and 24 mm diameter inserts
  • Please select at  size at option bar



HP6-EQ-3ESTC15

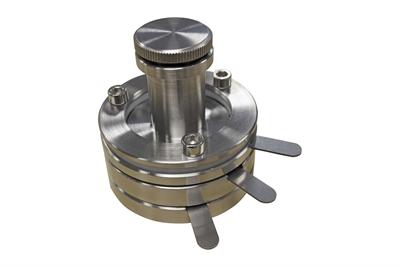

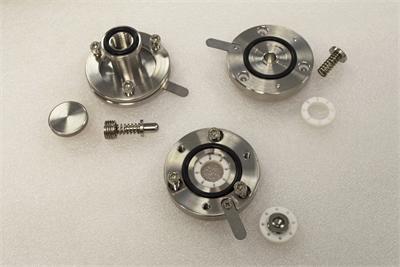

 Three-Electrode Split Flat Cell for R&D Battery - 15 mm Diameter Cell



The HP6-EQ-3ESTC15 split-able test cell is designed for R&D of rechargeable battery materials by testing three electrodes. It is designed test various electrodes easily and quickly by providing the user a structure to simulate assembled coin cells without the need to crimp actual coin cell cases. Two sides of the test cell connect to both electrode (the anode and cathode), with the middle being connected to the reference electrode which can be used for monitoring voltage variations of the two electrodes. This test cell can accept 15 mm diameter electrodes and 24mm separators.

 Specification

Structure Full stainless steel (SS304)
Features
  • 24 mm diameter insert
  • Sealed by electrolyte corrosive-proof PTFE O-rings
  • Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 250 ºC

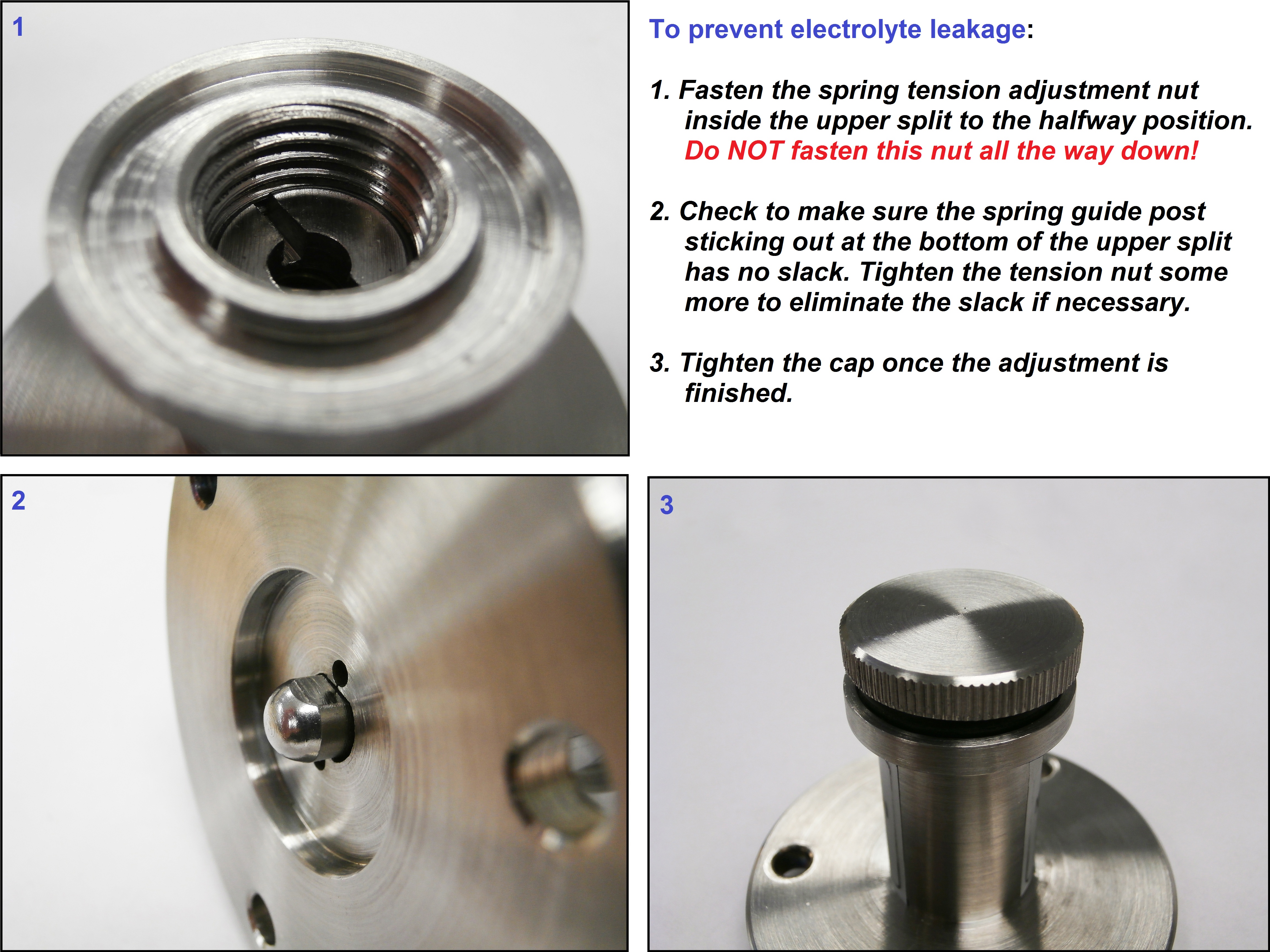

  • Adjustable spring tension on top to accept various electrode thicknesses
  • Easy to separate after testing
  • Small enough to be put into and taken out from a glove box


HP6-EQ-BC-8C

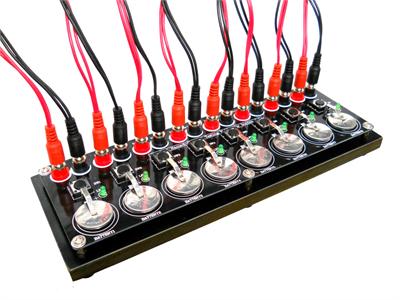

  8 Channels Coin/Button Cell Testing Board with Connecting Cables and Optional Connector for Battery Analyzers


Specification
  • 8 cables with optional connectors are included in the standard package for immediate use
    • The connectors to board are banana plug for easy insertion and removal
    • Another end ors of connect to testing system are optional connectors (choose the right one for you from above "connector type" when order

    4 alligator clamps (Two small for voltage and two big for current) compatible with other vendor's testing system

    Build-in battery polarity check light will be on when right place the coin cell and press down the check buttonCan test coin cell  with diam. upto 25mm and compatible with most of popular coin cell size, like CR2016, CR2032, CR2325 and CR2450
  • 8 channels work independently
  • Easy battery insertion and removal
  • Holder Material: Polypropylene
  •  Dimension: 230 mm L x 80 mm W x 32 mm H
