1", 2", 2.5",3", 4",5",6" wafer carrier, normal, PFA, PVDF, PP version

Home GelPak Carrier Module Carrier Tweezers Medical fibre Package
Lensed Fibre Membrane Box Highpower Fibre Button Cell Battery Photodetector Others
Part Number # Overall Size Dimension
HP5-S1
  Dia. 33  x 10 1" wafer
HP5-S2 Dia. 60 x 11 2" wafer
HP5-S25 Dia. 75 x 17 2.5"  wafer
HP5-S3 Dia. 84 x 13
3" wafer

HP5-S4 Dia. 110 x 12 4"  wafer
HP5-S5 Dia. 110 x 12 4"  wafer
HP5-S6 Dia. 165 x 17 6"  wafer
HP5-PP-25new 2", 3",4",5",6" blue wafer carrier
HP5-PFAnew 2", 2.5", 3", 4", 5"
HP5-PVDFnew for 103mm, 125mm, 150mm, 156mm square wafer

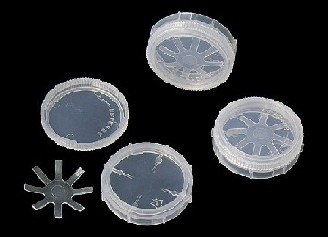

TYPE: HP5-S1   1"
Outside size: Dia.33mm x 10mm
Hold single 1" wafer

TYPE: HP5-S2  2"
Outside size: Dia.60mm x 11mm
Hold single 2 " wafer		 TYPE: HP5-S2.5  2.5"
 Outside size: Dia.75mm x 11mm  (2.36" x 0.43")
Hold single 2.5" wafer



TYPE: HP5-S3  3"
Outside size: Dia.84mm x 13mm (3.31" x 0.43")
Hold single 3 " wafer

 TYPE: HP5-S4  4"
Dimension:   110mm x 11mm  (4.33" x 0.43")

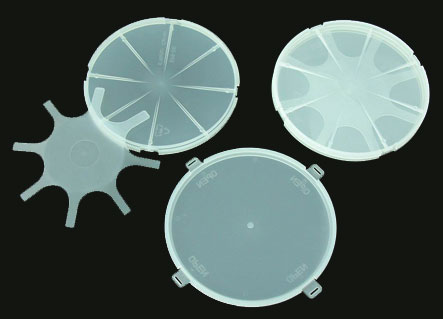

Hold single 4 " wafer		 TYPE: HP5-S6  6"
Dimension: 165  x 17 mm
Hold single 6" wafer,  Colour: Transparent

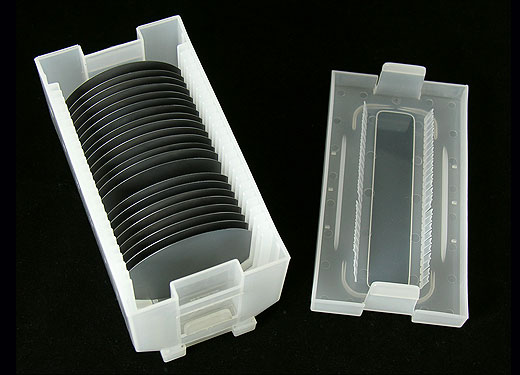

HP5-25 Wafer Carrier
 2", 3", 4", 5" wafer,   capacity: 25

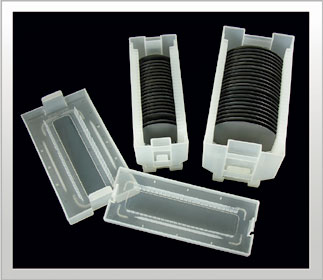

TYPE: HP5-2-25 (25pcs wafer carrier)
Outside Dimension:150mm x 55mm x 60mm
Wafer Diameter: 2 inch
Max. Holding Quantity: 25 pieces

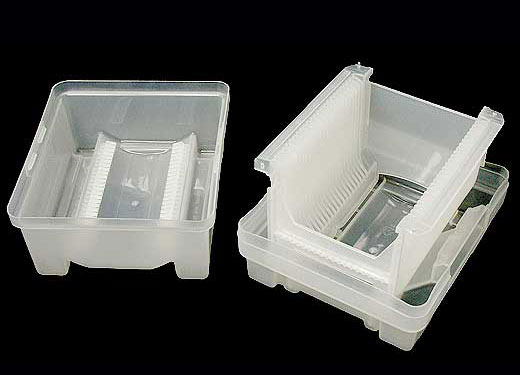

 TYPE: HP5-3-25  (25pcs wafer carrier)
Outside Dimension:152mm x 81mm x 87mm
Wafer Diameter: 3 inch
Max. Holding Quantity: 25 pieces		 TYPE: HP5-4-25  (25pcs wafer carrier)
Outside Dimension:160mm x 145mm x 115mm
Wafer Diameter: 4 inch
Max. Holding Quantity: 25 pieces

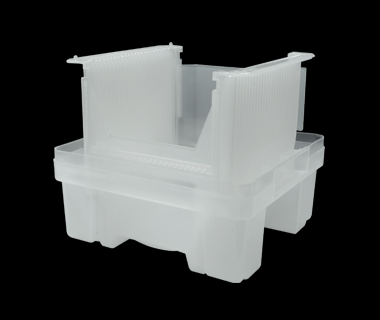

TYPE: HP5-5-25  (25pcs wafer carrier)
Outside Dimension: 180mm x 170mm x 160mm
Wafer Diameter: 5 inch
Max. Holding Quantity: 25 pieces

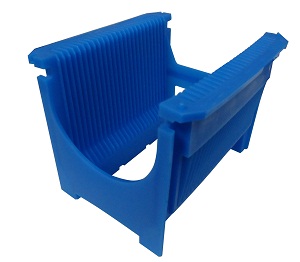

                                   HP5-PP-25 Blue Wafer Carrier

2", 3", 4", 5",6" wafer,   capacity: 25,  working temperature: -10 — 100°C
It's widely used in holding semiconductor silicon chip, wafer, glass, LCD screen.
use for washing solar wafer , anti-corrosion,  precise dimension.
 2" diameter wafer carrier(PP-2-25)  3" diameter wafer carrier 4" diameter wafer carrier

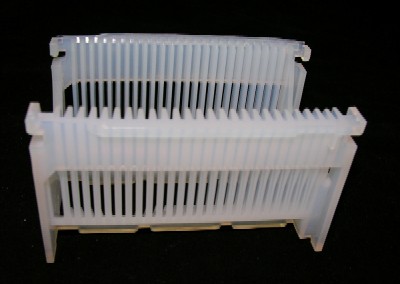

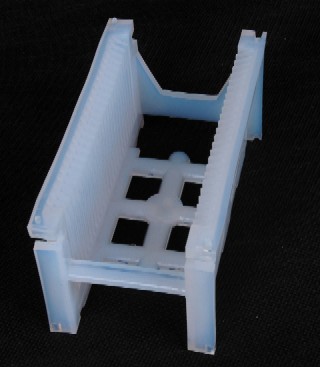

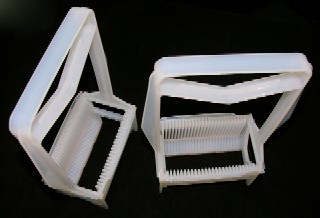

HP5-PFA wafer carrier (2", 2.5", 3", 4", 5")

Grade Capacity/pieces Size (L  x W x H mm) Usage Remarks
50mm(2") 25 142.2 x 68.1 x 58.7 Wafer carrier by machine or hand With PFA wafer carrier handles
62mm(2.5") 25 142.2 x 79.2 x 73.2
76mm(3") 25 142.2 x 93.7 x 82.6
76mm(3") 32 142.2 x 93.7 x 82.6
100mm(4") 25 142.2 x 125.5 x 114.3
125mm(5") 25 142.2 x 152.4 x 146.1



HP5-PFA wafer carrier (2", 2.5", 3", 4", 5")
The carriers could be used in HCL, HF solutions. Ideal for  wafer processing, transportation

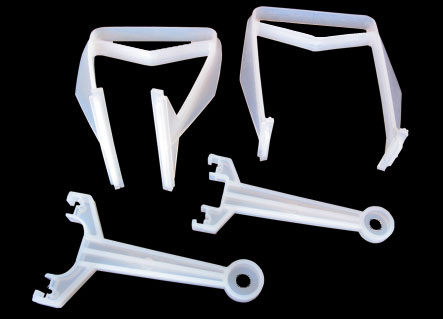

Matching PFA wafer carrier handles

Dimension:  50mm,  63mm,  76mm, 100mm and 125mm

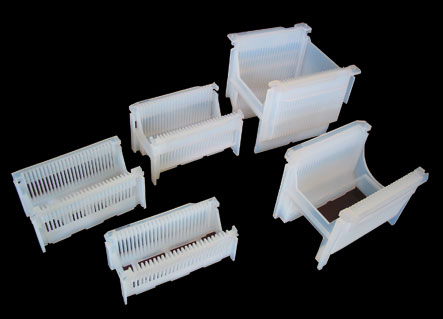

HP5-PVDF square wafer carrier
(available: 103 x103mm, 125 x 125mm, 150 x 150mm, 156 x 156mm)
The carriers could be used in HCL, HF solutions. Ideal for Si wafer processing, transportation
