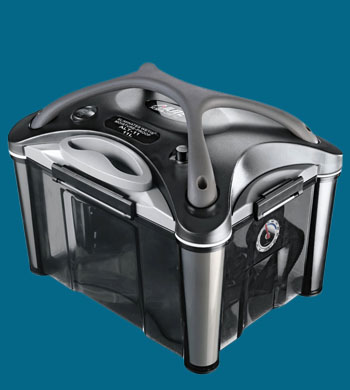

Mini classic vacuum moisture-proof case

Characteristics

Store/conserve your valuables in a vacuum environment;
Visible humidity, temperature changes with environment, moisture proof
No need of power and moisture absorption card;
High intensity PC materials, solid and rigid.
Dimension : 320*240*260mm
Inside volume: 11L
Presure inside: 30Kpa = 225 Torr

I. How to put articles into the case for conservation

1. First, open the case on the vacuum case, uncover t the case, put your articles in, close the lid and button the four ear clips.

2. Then, pull the air exhauster handle back and forth.

Stop until the black cylindrical button on the front right reaches the lid

II. How to open the case

Press and hold the PUSH button, a black cylindrical alone on the front left, until the black cylindrical vacuum button slowly rises to the original height, open four ear clips and then open the lid.

e-Vacuum-Pen & Portable Vacuum Pen

for more details: e-v-pen.pdf

Product details:
e-vacuum-pen can be the solution of packing for various kinds of crystal, chip, wafer, medical and valued optical-electronic devices.

Characteristics
Strong suction force: inserted with precision rubber sucker is 0-300gf and the silica gel sucker is 0-1000gf.
Adjustable suction force and Low noise
The specially made rubber sucker differs from ordinary one which can leave dust or grease mark on the surface of devices after suction.
The enclosure is made of high-quality aluminium alloy, so it is anti-magnet.

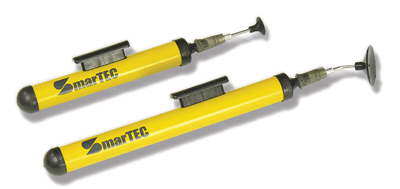

Portable Vacuum Pen

HMT-72 HMT-100c & HMT 150C

Part Number	Overall	Body Material	Probe Type	Optional Suction Cup
HMT-150C	Dia.12x130mm	Aluminium	Straight/bent	3.2mm/6.4mm/9.5mm/12.5mm/19mm
HMT-100C	Dia.12x98mm	Aluminium	Straight/bent
HMT-72-Normal	Dia.13 x 72mm	Rubber	Straight/bent
HMT-72-ESD	Dia.13 x 72mm	ESD silicon	Straight/bent

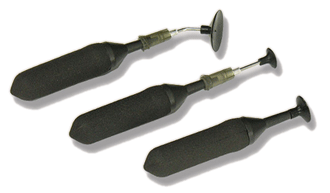

This HMT-72 portable pick-up tool can handle chip, crystal safely and easily. Vacuum suction is generated by pressing and releasing the trigger. Four suction cups in different size can meet various specific requirements. The pen body is made of ESD materials.

The HMT-100C & HMT-150C portable pick-up tool comes with three suction cups in different size and two optional materials can meet various specific requirements. The pen body is made of aluminium and static dissipative materials to make operation safely and cleanly.

Part Number (suction cup)	Dia.(mm)	Material
VMC-02	6.4	Conductive Silicon
VMC-03	9.5	Conductive Silicon
VMC-04	12.5	Conductive Silicon
VMC-05	19	Conductive Silicon

Material A (brown): acid/alkali-resistant, solvent-resistant rubber
Material B (black): conductive silicone
All suction cup can be ordered separately

Type	Dia.(mm)	Suction Force (g)	Material
VMC-01	3.2	~3	A (B)
VMC-02	6.4	~30	A (B)
VMC-03	9.5	~50	A (B)
VMC-04	12.5	~200	B
VMC-05	19	~500	B

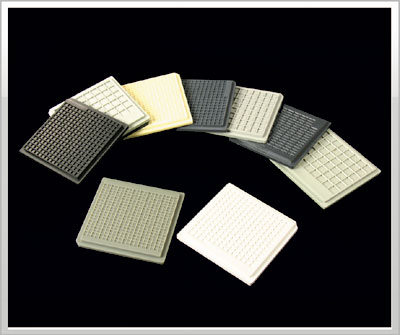

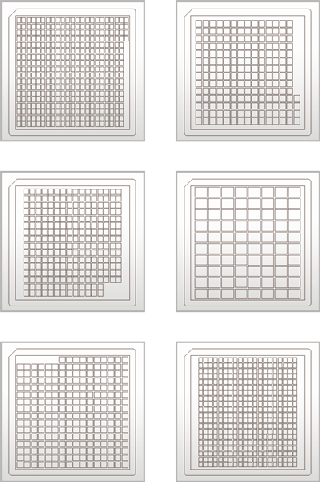

IC tray provides safe and convenient packing and delivery solution for bare die, CSP, opto-electronics and microelectronics devices. Various standard size and material (normal or ESD) are available. Specified requirement can be customized.

Part Number

Pocket Size

Array

Grid

X(mm)

Y(mm)

Z(mm)

HP-20x20-15

0.51

0.51

0.38

40 x 40

1600

HP-30x30-18

0.76

0.76

0.41

32 x 32

1000

HP-33x33-15

0.84

0.84

0.38

30 x 30

900

HP-34x165-18

0.86

4.19

0.46

28 x 9

250

HP-40x46-26

1.02

1.17

0.66

25 x 20

500

HP-40x50-22

1.02

1.27

0.56

25 x 20

500

HP-42x40-17

1.07

1.02

0.43

25 x 20

500

HP-42x50-12

1.07

1.27

0.30

20 x 20

400

HP-43x200-28

1.09

5.08

0.71

25 x 8

200

HP-45x38-22

1.14

0.97

0.56

25 x 32

800

HP-48x46-18

1.22

1.17

0.46

20 x 25

500

HP-48x46-22

1.22

1.17

0.56

20 x 25

500

HP-50x55-25

1.27

1.40

0.64

20 x 20

400

HP-70x48-22

1.78

1.22

0.56

20 x 20

400

HP-70x70-28

1.78

1.78

1.27

16 x 16

250

HP-75x75-50

1.91

1.91

0.69

16 x 16

250

HP-80x75-25

2.03

1.91

0.64

17 x 18

300

HP-83x175-24

2.11

4.45

0.61

15 x 8

120

HP-83x310-24

2.11

7.87

0.61

15 x 5

75

HP-83x447-24

2.11

11.35

0.61

15 x 3

45

HP-85x125-25

2.16

3.18

0.64

15 x 12

180

HP-85x125-40

2.16

3.18

1.02

15 x 12

180

HP-90x110-27

2.29

2.79

0.69

16 x 13

200

HP-100x90-25

2.54

2.29

0.64

14 x 15

200

HP-100x200-28

2.54

5.08

0.71

15 x 7

100

HP-100x235-27

2.54

5.97

0.69

15 x 7

105

HP-100x250-30

2.54

6.35

0.76

14 x 6

80

HP-100x665-30

2.54

16.89

0.76

15 x 2

30

HP-110x120-30

2.79

3.05

0.76

10 x 10

100

HP-120x120-28

3.05

3.05

0.71

10 x 10

100

HP-130x130-30

3.3

3.3

0.76

10 x 10

100

HP-135x135-30

3.43

3.43

0.76

10 x 10

100

HP-150x150-30

3.81

3.81

0.76

10 x 10

100

HP-155x190-30

3.94

4.83

0.76

10 x 8

80

HP-175x175-30

4.45

4.45

0.76

8 x 8

64

HP-180x180-30

4.57

4.57

0.76

8 x 8

64

HP-210x270-30

5.33

6.86

0.76

7 x 6

42

HP-240x240-35

6.1

6.1

0.89

5 x 5

25

HP-250x350-30

6.35

8.89

0.76

6 x 4

24

HP-780x70-34

19.81

1.78

0.86

2 x 20

40

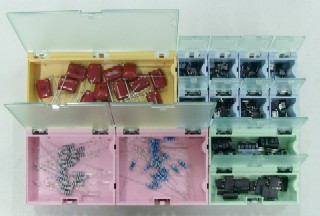

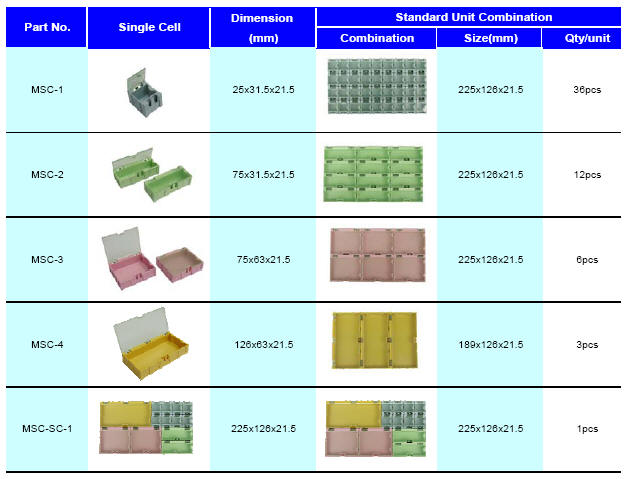

Multi–use storage container is designed to be used for containing variety of electronic components, accessory, IC chip, mini-hardware, small-sized delicate parts.
Four standard single cell in different size can be combined easily The patented structure can provide any size and combination case for classification and storage. With clip lock, the items inside would be safely locked even if the multi-use storage cell is shaken or put upside-down. Translucent lip enables to identify the item inside easily.

Clean tape: CT-101(WHITE)-LOW
CT-102(YELLOW)-HIGH

Dimension: W x L: 19mm x 33000mm/per roll
The tape is specially used to remove dust from the gel surface of sticky carrier. No contamination, stable adhesion, clean package make the cleaning easily and safely. Economically, cleaned carrier can be recycled.

Solvent bottle:
White: normal material
Blue: anti-static material

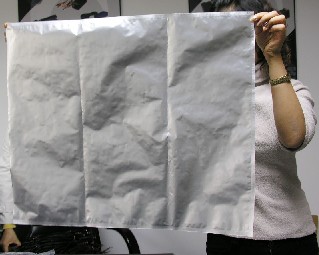

Clean bag:

Class 100 clean package used in clean-room.
Patented two-layer structure, vacuum sealable
Choice of materials: PE or Al
Choice of size and dimension, i.e. for 6", 8" single or 25 wafer boxes
